Device Timer Settings
| Device | Time On | Time Off | Active Duration |
|---|---|---|---|
| CO2 Injection | 08:00 | 16:00 | 8 hours |
| Air Pumps | 18:00 | 08:00 | 14 hours |
| Terrestrial Lights - Desk | 09:00 | 18:00 | 9 hours |
| Terrestrial Lights - Shelf | 09:00 | 18:00 | 9 hours |
Aquarium Light Settings
| Sunrise 1 (1) |
Sunrise 2 (2) |
Daylight 1 (3) |
Daylight 2 (4) |
Daylight 3 (5) |
Sunset 1 (6) |
Sunset 2 (7) |
Night (8) |
|
|---|---|---|---|---|---|---|---|---|
| Time On | 08:30 | 9:00 | 9:30 | 10:00 | 16:00 | 16:30 | 17:00 | 17:30 |
| Duration | 0.5 hr | 0.5 hr | 0.5 hr | 6 hrs | 0.5 hr | 0.5 hr | 0.5 hr | 15 hrs |
| Intensity (%) | 30 | 40 | 50 | 70 | 50 | 40 | 40 | 00 |
| Spectrum | Full | Full | Full | Full | Full | Full | Blue | Blue |
| Height | 4" | 4" | 4" | 4" | 4" | 4" | 4" | 4" |
Setting the Desk Terrestrial Plants and Air Pump Timers
- Initial Set Up
- Charge the battery: plug the timer into a 125 volts outlet for 10 minutes (memory backup battery)
- Timer reset: clear previous data in memory by pressing Reset button after charging
- 12/24 hour mode: default is 12 hour mode, press the On and Off buttons simultaneously to switch to 24 hour mode
- Set time: Press and hold Time button, and then press Hour and Min to set current time
- To Program
- Press and hold On button, and then Hour and Min to set On program
- Press and hold Off button, and then Hour and Min to set Off program
- To Operate
- Press Mode button as necessary to display:
- On -- the plugged in device remains On
- Off -- the plugged in device remains Off
- Time -- the plugged in device follows your programmed timer setting
- To connect the timer
- Plug the timer into an outlet
- Plug a device into the timer
- Turn on the device

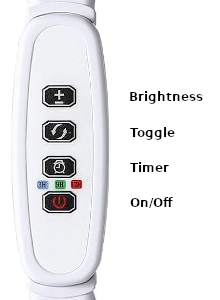

Setting the Shelf Terrestrial Plants Timer
- Brightness
- adjust via short presses for 10 levels of brightness
- djust via long press for stepless dimming
- Toggle
- 1 short press for Light A on
- 2 short presses for Light B on
- 3 short presses for Lights A and B on
- Timer (auto on/off timing, period begins at the moment of activation)
- 1 short press for 3 hour cycle
- 2 short presses for 9 hour cycle
- 3 short presses for 12 hour cycle
- 4 short presses to cancel timing
- Do not manually turn off the light or cut off the power supply unless you want to reset the timer function
